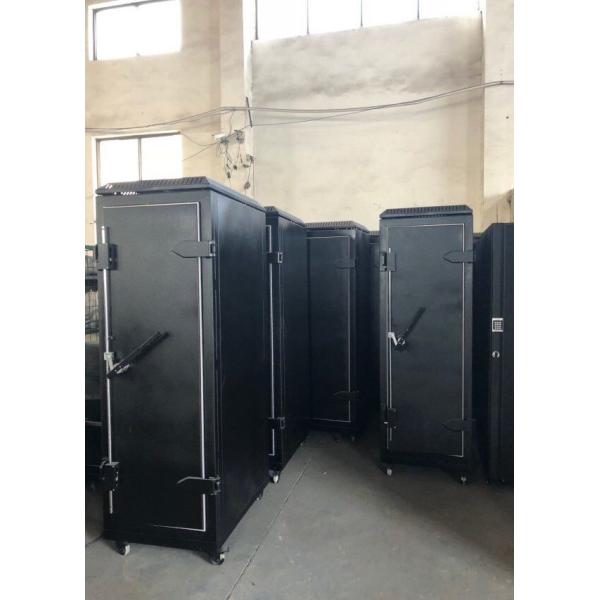

RF Shielded Chamber Electromagnetic Cabinet Steel Plate Plus Ventilation

Shielded Cabinet

Description:

With the continuous development of electronic technology, electromagnetic interference

in the form of noise and radiation intensifies, greatly affecting the normal and safe work of

electronic communication equipment such as electronic computers, network servers, switches

and more serious possible leakage of information.
In order to effectively protect the communication electronic equipment and electronic information.

Features:

1. Movable platforms

2. Placed on desk or workbenches

3. Large mobile cabinet

4. Welded cabinets are available

5. Customized acceptable

Performance:

Its Testing Method according to GB2190-90 Standard

C-grade (TPGI) Magnetic Field: 14KHz ≥ 70dB 150KHz ≥ 95dB

Electric Field: 200KHz~1GHz ≥ 100dB

Plane Wave: 50MHz~1GHz ≥ 100dB

Microwave: 1GHz~10GHz ≥ 95dB

B-grade (TPG2) 150KHz~930MHz ≥ 80dB

Structure

1. Shielding Shell: a completely closed box welded by Cold-Rolled Steel Plate, which has been Galvanized,

painted, and other anti-corrosive treatments.

2. Shielding Door: shielding reed made of high-quality materials and carefully processed,

and a shielding door composed of doors welded by cold-rolled steel plates.

3. Power Filter: power filter has a wide suppression band and high insertion loss.

4. Ventilated Waveguide: honeycomb waveguide vent is equipped with a number of miniature axial fans

at the top of the window, with a single exhaust volume of 1.4m3/min.

5. Others: transmission interface and electrical socket can be configured according to customer requirements.

FAQ:

RF Shielded Chamber Material Customized Size RF EMC Door Shielded Cabinet

Q1. Can I have a sample order for RF EMC Door and Shielded Cabinet?

A: Yes, MOQ 1pc.

Q2. What about the lead time?

A: Usually 7-10 working days.

Q3. Do you have any MOQ limit for order?

A: Low MOQ, 1pc is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.

Q5. How to proceed an order for door and cabinet?

A: Firstly let us know your requirements or size, thickenss and also quantity.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: We can offer OEM service.
