ED Copper Foil Specification
Quality Items | General Technical Terms |
2oz | 3oz | 4oz | 5oz | 6oz |
(70um) | (105um) | (0.14mm) | (175um) | (210um) |
Area Weight g/m2 | 585±25 | 915±45 | 1220±60 | 1525±75 | 1830±90 |
Leakage Points | No |
points/m2 |
Quality of electrical | ≤0.162 |
resistivity |
Ω·g /m2 |
Anti-Oxidization | No Oxidization |
Performance |
160 centigrade/30min |
Width Tolerance | 1290.0±1.0 | 1320.0±1.0 | 1370.0±1.0 |
mm
|
ED Shielding Copper Foils
We can offer different thickness and width copper foil/ sheet for
you. It is ED copper foil, which is the best shielding material for
MRI RF room. In usual, 3oz thickness 1320mm width ED shielding
copper foil/ sheet is our hot-sale product. We can also offer RA
copper foils for different uses.
Electrodeposited copper foil UT is untreated foil with smooth
profile on both sides which allow it to be used as current
collector for the anode of Li-Ion batteries.
Characteristic:
1. High performance, vertically-supported modular enclosure
2. Reinforced wall design
3. Lightweight
4. Installed in more MRI sites worldwide than any other shield
system
5. Easily and quickly modified on site should a problem or change
occur
6. Copper serves as an eddy current shield for EMI protection

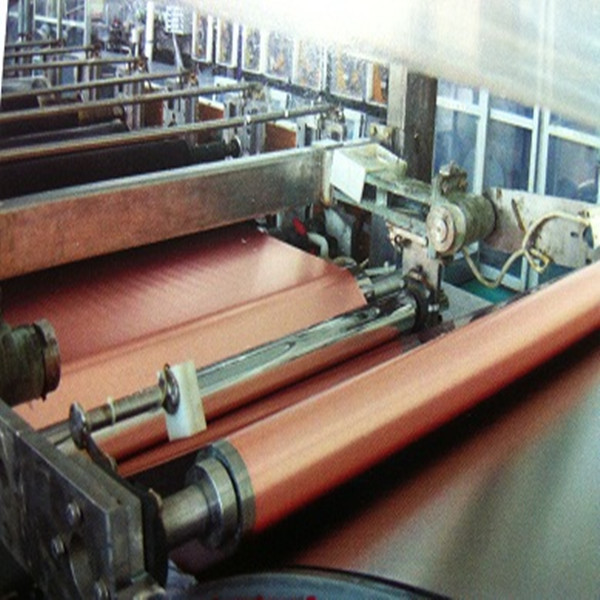

Producing Process
Product packaging
| 1500mm*330mm*463mm |
| 263kg |
| The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. |
Company Description:
Beijing CN-FT JOVI Technology and Trading Co., Ltd which has set up
at 2010,a professional international import
and export company. JOVI insists on the principle of Professional
and Reliable, Worthy of your Trust, and also the management
theory of Creating the Best Value for our Customers.
Main products are ED Copper Foils, Copper Mesh, Copper Tapes, which
can be used in MRI Room Installation, Bonded NdFeB Magnetic Powder,
LiPF6, Cells Tapes for Li-ion Battery, Special Chemical
additives,Precision high-end detector,fiberglass for building and
jet-liner and ect,.
We have many customers and suppliers such as Korea, Japan, USA, UK,
German, Romania, Russia, Turkey, Chile, Argentina, Netherlands,
Taiwan, India, Vietman, Spain, Peru...
